Snipr Axis Integration



Please follow instructions below to set your Axis ANPR Camera to talk to the SNIPR Cloud

Take note, Axis ANPR cameras can only communicate to the cloud if the cameras contain the FFGroup LPR Plugin.

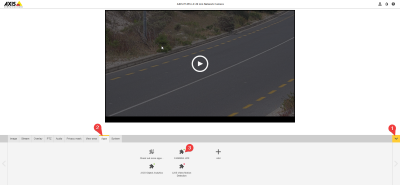

Phase 1: Verifying you have the plugin installed

  1. Select settings on the far right.

  2. Select the App tab.

  3. Select Camera LPR Plugin.

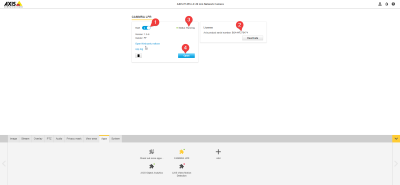

Phase 2: Verifying the LPR plugin is running

  1. Ensure that the application is started.

  2. Provide this serial number to our Support Team. They will ask for this as we use this number as your cameras unique identifier.

  3. This indicates the current status of your LPR app. It must always be running, otherwise the reads will not be sent to SNIPR.

  4. Select Open, to continue the onboarding process.

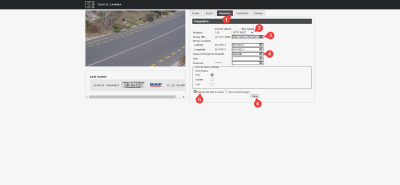

Phase 3: Configuring the camera to forward reads to SNIPR

Only process the below changes.

  1. Select integration tab.

  2. Ensure that Protocol is set to HTTP Post.

  3. Insert the following into the URL field. https://snipr.online/api/v3/user/ffgroup

  4. Insert the provider ID, this will be provided to you by our Support Team.

  5. Ensure Send to event data to server is ticked. The camera will not send reads to SNIPR if this box is not ticked.

  6. Hit save when all of the above is done.

Phase 4: Setting the image size that is sent to SNIPR

Only process the below changes.

  1. Select Settings.

  2. Ensure frame type is set to full frame.

  3. Hit save to commit changes.

Important!

Submit the serial number of your Axis ANPR Camera (captured in Phase 2 Step 2 of this guide) through to Support@one-space.co.za along with your take on form. And our team will conclude the onboarding process for you.
