iDS-2CD7A46G2/P-IZHS
High quality imaging with 4 MP resolution
Excellent low-light performance via DarkFighter 2.0 technology
Clear imaging against strong back light due to 150 dB AWDR technology
Efficient H.265+ compression technology to save bandwidth and storage
5 streams to meet a wide variety of applications
Water and dust resistant (IP67), vandal proof (IK10) and corrosion resistant (NEMA 4X, optional)
High frame rate, up to 2MP@120fps and 4MP@60fps
PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.53 A to 0.4 A, max. 22.6 W
Built-in power meter for historical power statistics
License plate recognition and vehicle attribution recognition
Installation Environment by Lens:
2.8 to 12mm Lens, best suited for Entrances to Office Parks or Estates.
8 to 32mm Lens, best suited for Road Side.
| ANPR Performance Matrix | ||||||||
|---|---|---|---|---|---|---|---|---|
| Power Requirement | Camera Position | Lens Size | Height (Meters) | Suggested Trigger Distance (Meters) | Capture Range (Meters) | Max Speed for Capture | Max IR Distance (Meters) | Supported Lanes |
| 12V, 1.88A, 22.56W | Side of the Road | 2.8 to 12 mm | 1.5 | 4 | 2.5 to 5.5 | 80 km/h | 50 | 1 |
| 12V, 1.88A, 22.56W | Side of the Road | 2.8 to 12 mm | 2 | 5.5 | 3.5 to 7.5 | 80 km/h | 50 | 1 |
| 12V, 1.88A, 22.56W | Side of the Road | 2.8 to 12 mm | 2.5 | 6.5 | 4.5 to 9 | 80 km/h | 50 | 1 |
| 12V, 1.88A, 22.56W | Side or Above Road | 8 to 32 mm | 3 | 8 | 5 to 11 | 120 km/h | 100 | 2 |
| 12V, 1.88A, 22.56W | Side or Above Road | 8 to 32 mm | 4 | 11 | 6 to 14 | 120 km/h | 100 | 2 |
| 12V, 1.88A, 22.56W | Side or Above Road | 8 to 32 mm | 5 | 13.5 | 8.5 to 18 | 120 km/h | 100 | 2 |
| 12V, 1.88A, 22.56W | Side or Above Road | 8 to 32 mm | 6 | 16.5 | 10 to 22 | 120 km/h | 100 | 2 |
iDS-2CD7A46G0/P-IZHS
High quality imaging with 4 MP resolution
Excellent low-light performance via DarkFighter technology
Clear imaging against strong back light due to 140 dB WDR technology
License Plate Recognition
Efficient H.265+ compression technology to save bandwidth and storage
5 streams to meet a wide variety of applications
Water and dust resistant (IP67) and vandal proof (IK10)
PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.53 A to 0.4 A, max. 22.6 W
Installation Environment by Lens:
2.8 to 12mm Lens, best suited for Entrances to Office Parks or Estates.
8 to 32mm Lens, best suited for Road Side.
| ANPR Performance Matrix | ||||||||
|---|---|---|---|---|---|---|---|---|
| Power Requirement | Camera Position | Lens Size | Height (Meters) | Suggested Trigger Distance (Meters) | Capture Range (Meters) | Max Speed for Capture | Max IR Distance (Meters) | Supported Lanes |
| 12V, 1.88A, 22.56W | Side of the Road | 2.8 to 12 mm | 1.5 | 4 | 2.5 to 5.5 | 80 km/h | 50 | 1 |
| 12V, 1.88A, 22.56W | Side of the Road | 2.8 to 12 mm | 2 | 5.5 | 3.5 to 7.5 | 80 km/h | 50 | 1 |
| 12V, 1.88A, 22.56W | Side of the Road | 2.8 to 12 mm | 2.5 | 6.5 | 4.5 to 9 | 80 km/h | 50 | 1 |
| 12V, 1.88A, 22.56W | Side or Above Road | 8 to 32 mm | 3 | 8 | 5 to 11 | 120 km/h | 100 | 2 |
| 12V, 1.88A, 22.56W | Side or Above Road | 8 to 32 mm | 4 | 11 | 6 to 14 | 120 km/h | 100 | 2 |
| 12V, 1.88A, 22.56W | Side or Above Road | 8 to 32 mm | 5 | 13.5 | 8.5 to 18 | 120 km/h | 100 | 2 |
| 12V, 1.88A, 22.56W | Side or Above Road | 8 to 32 mm | 6 | 16.5 | 10 to 22 | 120 km/h | 100 | 2 |
iDS-TCM403-GIR
High quality imaging with 4 MP resolution(1/1.8'' CMOS)
Built-in 77GHz high frequency millimeter wave radar
Detection Distance: Up to 100m
Speed Measuring Range: Up to 120Km/h
Clear imaging against strong back light due to 140 dB WDR technology
Built-in ANPR engine, equipped with AI algorithm
Coverage Lanes: 3 Lanes
Efficient H.265 compression technology
Water and dust resistant (IP67) and vandal proof (IK10)
PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.53 A to 0.4 A, max. 22.6 W
Installation Environment by Lens:
8 to 32mm Lens, best suited for Road Side.
AE-VC583I-IS-P(H)
1/2.7" Progressive Scan CMOS
4mm/6mm/8mm/12mm/16mm fixed lens
High quality imaging with 5 MP resolution
Clear imaging against strong back light due to 120 dB true WDR technology
Efficient H.265+ compression technology
Water and dust resistant (IP68&IP69K) and vandal proof (IK10)
Advanced streaming technology that enables smooth live view and data self-correcting in poor network
3DNR technology delivers clean and sharp images
Installation Environment:
Onto Vehicle Front or Rear Bumper.
ITC413-PW4D
High-performance CMOS image sensor and processor that supports continuously extracting metadata 24/7.
Adopts intelligent deep learning algorithms and supports recognition of unlicensed vehicles and the type, brand and color of vehicles.
Built-in signal port, data port, communication port and remote controllers assist in controlling external devices such as entry and exit barriers.
Built-in LED for simplified installation and commissioning.
All-in-one structure with junction box and bracket, and it is also low power consumption.
IP67 and IK10 rated.
Supports intrusion and loitering detection and triggers light and voice alarms when perimeter events occur to actively deter targets. Custom audios can also be imported and edited.
Easily adapts to scenarios through its motorized vari-focal lens
Power Supply: 12V DC, 36V DC, PoE (Supported)
Installation Environment:
Best suited for Entrances to Office Parks or Estates.
| DAHUA ITC 413 | |||||||
|---|---|---|---|---|---|---|---|
| Power Requirement | Camera Position | Lens Size | Height (Meters) | Capture Range (Meters) | Max Speed for Capture | Max IR Distance (Meters) | Supported Lanes |
| 12V, 2A, 20W | Side or Above the Road | 2.8 to 12 mm | 1.2 | 3 to 8 | 80 km/h | 10 | 1 |
| Side or Above the Road | 2.8 to 12 mm | 1.5 | 4 to 8 | 80 km/h | 10 | 1 | |
| Side or Above the Road | 2.8 to 12 mm | 1.8 | 4.2 to 8 | 80 km/h | 10 | 1 | |
| Side or Above the Road | 2.8 to 12 mm | 2 | 4.5 to 8 | 80 km/h | 10 | 1 | |
| Side or Above the Road | 8 to 32 mm | 2 | 6 to 10 | 120 km/h | 30 | 1 | |
| Side or Above the Road | 8 to 32 mm | 3 | 6 to 15 | 120 km/h | 30 | 1 | |
| Side or Above the Road | 8 to 32 mm | 4 | 7 to 19.5 | 120 km/h | 30 | 1 | |
| Side or Above the Road | 8 to 32 mm | 5 | 8.5 to 20 | 120 km/h | 30 | 1 | |
| Side or Above the Road | 8 to 32 mm | 6 | 10 to 20 | 120 km/h | 30 | 1 | |
| Side or Above the Road | 8 to 32 mm | 3 | 12 to 15 | 120 km/h | 30 | 2 | |
| Side or Above the Road | 8 to 32 mm | 3.5 | 12 to 17 | 120 km/h | 30 | 2 | |
| Side or Above the Road | 8 to 32 mm | 5 | 8.5 to 20 | 120 km/h | 30 | 2 | |
ITC431-RW1F-IRL8
1/1.8" 4 MP starlight CMOS sensor.
Video compression standards: H.265, H.264M, H.264H and MJPEG.
Maximum resolution: 2688 × 1520@30 fps.
Motorized vari-focal lens: 10 mm-50 mm.
Storage: FTP, TF card (maximum 256GB@Class10)
Max ANPR IR distance: 30 m.
Protection: IP67
Power Supply: 12V DC, 36V DC, PoE (Supported)
Installation Environment:
Best suited for Road Side Installations
TD-9452A3-PA
5MP (2592 x 1944) H.265 coding
30 – 50 m IR night view distance
Intelligent Analytics with classification
Vari-focal 2.8 – 12mm motorized lens
Ingress Protection: IP67
Power Supply: 12Vdc / PoE (Supported)
3D DNR, true WDR, HLC, BLC and ROI coding
Built-in micro SD card slot, up to 128GB
Sound and light warning, 1ch Speaker
Installation Environment:
Best suited for Road Side Installations.
Estate / Office Park Entrances.
TD-9423A3-LR
2MP ( 1920 × 1080 ) @30fps
Support smart H.265/H.264 coding
ICR auto switch, true day/night
Up to 100m IR night view distance; motorized zoom lens
3D DNR, true WDR, HLC, BLC and ROI coding
Built-in micro SD card slot, up to 256GB
Ingress Protection: IP67
Power Supply: 12Vdc / PoE (Supported)
3D DNR, true WDR, HLC, BLC and ROI coding
Sound and light warning, 1ch Speaker
Installation Environment:
Best suited for Road Side Installations.
Estate / Office Park Entrances.
TD-9423A3-LR
2MP ( 1920 × 1080 ) @30fps
Support smart H.265/H.264 coding
ICR auto switch, true day/night
Up to 100m IR night view distance; motorized zoom lens
3D DNR, true WDR, HLC, BLC and ROI coding
Built-in micro SD card slot, up to 256GB
Ingress Protection: IP67
Power Supply: 12Vdc / PoE (Supported)
3D DNR, true WDR, HLC, BLC and ROI coding
Sound and light warning, 1ch Speaker
Installation Environment:
Best suited for Road Side Installations.
Estate / Office Park Entrances.
XNV-L6080A
Max. 2megapixel (1920 x 1080) resolution
3.2 ~ 10mm (3.1x) motorized varifocal lens
Max. 60fps@all resolutions (H.265 / H.264)
H.265, H.264, MJPEG codec supported, Multiple streaming
Day & Night (ICR), WDR (120dB), Defog
Tampering, Defocus detection
Motion Detection, Handover
SD/SDHC/SDXC memory slot (Max. 256GB)
Hallway view, WiseStreamII support
IP66, IK10, PoE support
Use of the onboard RoadWatch App and a SD Card is required for utilizing this camera for SNIPR ANPR Services
Installation Environment:
Estate / Office Park Entrances. Under roofing.

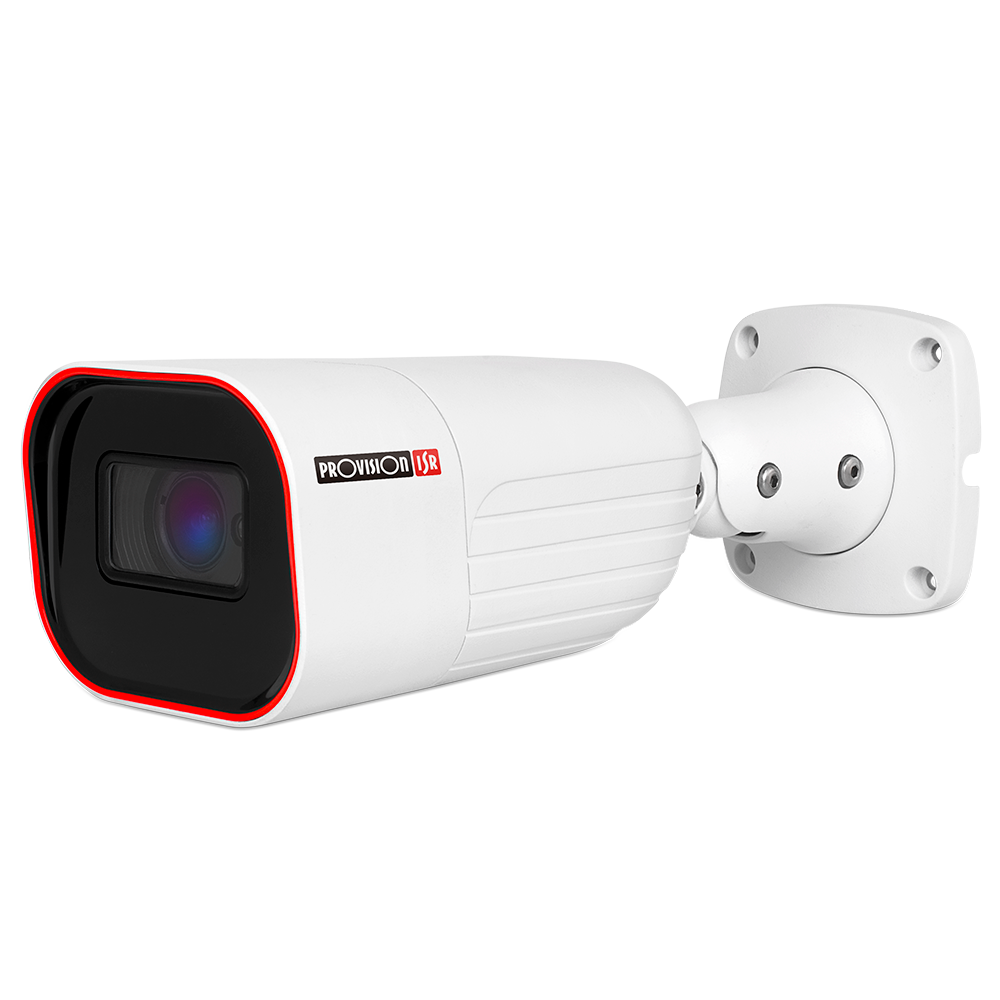

I6-320LPR-MVF1
I6-320LPR-MVF1 2MP MVF Lens Bullet Camera with IR LED and LPR Analytics
Sensor: 1/2.8″ CMOS (16:9)
Resolution: 1920×1080 25/30FPS (2MP)
Lens: 2.8-12mm MVF(103.4°-32.4°)
True Day&Night – ICR
Illumination: 60m (4 High-Power IR LED)
Compression: H.265+/ H.264+ / H.265 / H.264 / MJPEG
True WDR(120dB), BLC, HLC, ROI
SD Card: Event/Schedule Record (Up to 128GB)
Water Proof: IP67
Power: DC12V/~910mA / PoE/~11W
Installation Environment:
Estate / Office Park Entrances. Under roofing.
I6-320LPR-MVF2
I6-320LPR-MVF1 2MP MVF Lens Bullet Camera with IR LED and LPR Analytics
Sensor: 1/2.8″ CMOS (16:9)
Resolution: 1920×1080 25/30FPS (2MP)
Lens: 7-22mm MVF (44°-17.6°)
True Day&Night – ICR
Illumination: 60m (4 High-Power IR LED)
Compression: H.265+/ H.264+ / H.265 / H.264 / MJPEG
True WDR(120dB), BLC, HLC, ROI
SD Card: Event/Schedule Record (Up to 128GB)
Water Proof: IP67
Power: DC12V/~910mA / PoE/~11W
Installation Environment:
Estate / Office Park Entrances. Under roofing.
HC121-TC-08S-Z28
2MP industrial quality sensor, 1920*1080 video image resolution
Sensor: 1/2.8″ CMOS (16:9)
Resolution: 1920×1080 25/30FPS (2MP)
Lens: 2.8-12mm, motorized zoom
True Day&Night – ICR
Compression: H.265, H.264, JPEG
8GB eMMC, expansion up to 256GB
Water Proof: IP67
Power: Provides AC24V/DC12V power supply and supports PoE
Installation Environment:
Estate / Office Park Entrances. Under roofing.
PKC2640@Z28-P
2MP industrial quality sensor, 1920*1080 video image resolution
Sensor: 1/2.8″ CMOS (16:9)
Resolution: 1920×1080 25/30FPS (2MP)
Lens: 2.8-12mm, motorized zoom
Built-in integrated illumination module, including 4 IR LEDs, 50m illumination distance, automatic on/off control
True Day&Night – ICR
Compression: H.265, H.264, JPEG
8GB eMMC, expansion up to 256GB
Water Proof: IP67
Power: Provides AC24V/DC12V power supply and supports PoE
Installation Environment:
Estate / Office Park Entrances. Under roofing.
