Snipr Uniview Integration



Please follow instructions below to set your Uniview ANPR Camera to talk to the SNIPR Cloud

Phase 1

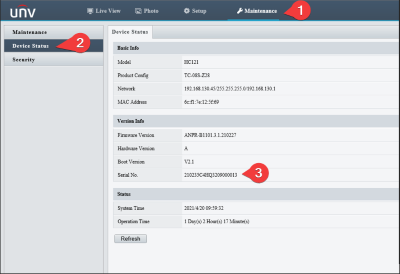

  1. Login to the camera in the browser.

  2. Navigate to the Maintenance menu and then Device Status.

  3. Record the Serial No. field.

Once done. You will then need to set the camera to forward ANPR events to SNIPR. To do this, you need to use the cameras TCP Message function. Below are the steps required to do this.

Phase 2

Proceed through the below steps. From steps 4 - 7, enter what is specified after the : (If a field is not mentioned or specified below then leave it as default)

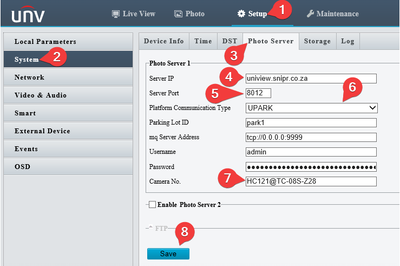

  1. Navigate to the Setup menu.

  2. Then System.

  3. Photo Server.

  4. Server IP: uniview.snipr.co.za

  5. Server Port: 8012

  6. Platform Communication Type: UPARK

  7. Camera No. : <Camera Name>

  8. Save the form.

Important!

Submit the serial number of your Uniview ANPR Camera (captured in Phase 1 Step 3 of this guide) through to Support@one-space.co.za along with your take on form. And our team will conclude the onboarding process for you.
